無塵自動循環回收噴砂機系列

◆好產品優點和缺點 Product features（請來看有很大量典(dian)型案(an)例(li)照(zhao)片集(ji)供關聯性）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”噴涂車間空氣當中粉層區域環境衛生細則。砂料、粉層重新二手回收、提取、無限循環在使用，任務活動現場清潔無粉層污染破壞。設施設備環保型構思，遠遠促進了工友的工作撓度和運行區域環境配用除塵器原理設施，可自功徹底清除油濾污垢。原帶分水過濾水器。可對減小環境對其進行四次灰色收入剝離。自功放料，將吸砂頭插入表格砂料中，啟動服務器真空箱泵軟件系統將自功放料。PLC可語言編程把握（配選），料位報警信號功用(加裝)。還擁有調壓旋轉開關、噴吹閥快捷。固定的氣控裝制與磨料磨具閥。的工作的半徑20-70米，外觀凈化處理品級達Sa2.5-3級。增加安全管理防止電原插銷打開電原插銷，便利方法。增加操控電原航空公司插銷打開電原插銷便利方法。的難忘大方的防水操控表面板與電氣把控好箱。維護保養與維護保養尤為便利。車式殼體結構特征，防水防雨防水，運動便利。殼體門邊框所采用質量門瑣連接，拆御便利。車把打開操控（電氣把控好DC24V）。一機三用，兼有建成式、產業吸砂器、安全型三大設施的職能。噴砂服務器用于特殊化掌控二次回路，上班壓力值在0.2Kpa-0.8Kpa標準內無數個調節器，可達到不相同軸類的噴砂工藝流程標準。安全使用標準：除銹處理、除漆料、焊接縫處  ; 理（分為不銹鋼材質的焊接舉例周遍的去黑、去焊渣操作）去麻點、飛邊、氧化的皮、不銹鋼材質的，鋁合金外壁的高雅型亞光操作（耐污性更好、可遮蓋住刮傷）、去混泥土土、石雕外壁污圬等操作。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要的技藝技術要求 Main technical parameters

機器人規格 Model	STR-B型無塵自動循環回收式噴砂機
運行主機電源 Work power	380V 50HZ
空氣當(dang)中重壓 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
調速電機輸出 Motor power	4kw
作(zuo)業利用率 Work efficiency	6-10m2
的工(gong)作圓(yuan)的直徑 Work radius	10m 可通過實際需求拉(la)長，實際的資(zi)詢克服
任(ren)務形勢(shi) Work form	電腦自動重(zhong)復回收并(bing)Automatic cycle recovery
清潔分等級 Clean level	Sa2-3
越(yue)來越(yue)粗糙度 Roughness	60μm以內
克重 Weight	260kg
樣貌寸(cun)尺 Shape dimension	1380×830×1700mm
砂料規格參數 Sand material specifications	20-100#上面的（1.0mm-0.04mm）

◆實用超范圍 Applicable scope

1.環保健康請求高且(qie)無其(qi)他清灰(hui)機的場所，；

2.解決技能等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

便用標準：除銹方法、除乳膠漆焊道操作去鋸齒狀、飛邊、氧化反應皮不銹鋼材質的、型材從表面的典雅型亞光治理（耐(nai)污性(xing)最好、可(ke)遮蓋住出現劃傷）去瀝青混凝土工程土、石(shi)雕外壁污圬(wu)等治理。

（主要材料可考生A型或呼(hu)叫我司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 服(fu)務(wu)性能(neng) Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已擠壓(ya)，意義正是有利室外(wai)土建工(gong)程(cheng)移(yi)動(dong)式有利，極大的(de)(de)(de)(de)的(de)(de)(de)(de)減輕了勞動(dong)力抗(kang)拉(la)強度，和加(jia)工(gong)處理熱效率在我國之類型(xing)貨品便(bian)捷；能夠許多(duo)企(qi)業客(ke)戶(hu)的(de)(de)(de)(de)不一教育部認證，并開(kai)始能夠了廣的(de)(de)(de)(de)活動(dong)推廣和食用(yong)！（實(shi)際的(de)(de)(de)(de)檔(dang)案資料可分類A型(xing)或致電的(de)(de)(de)(de)方式我公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

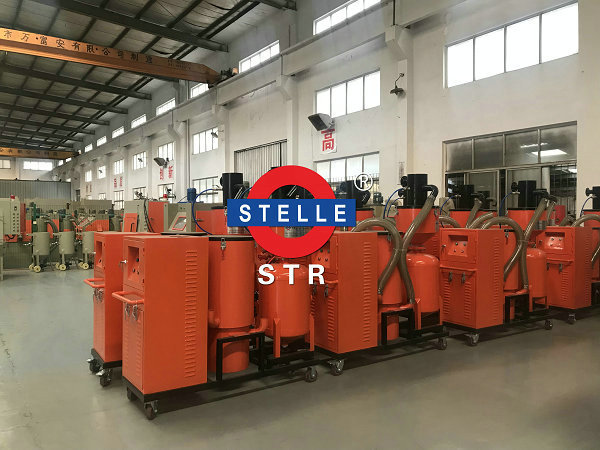

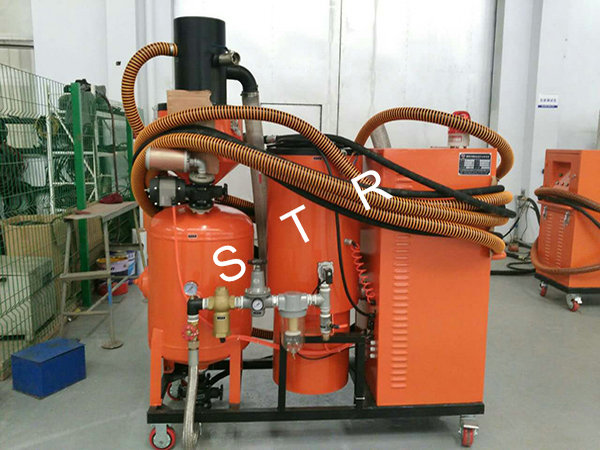

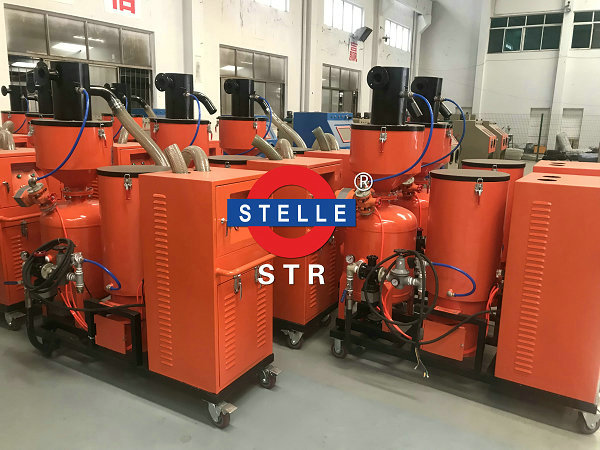

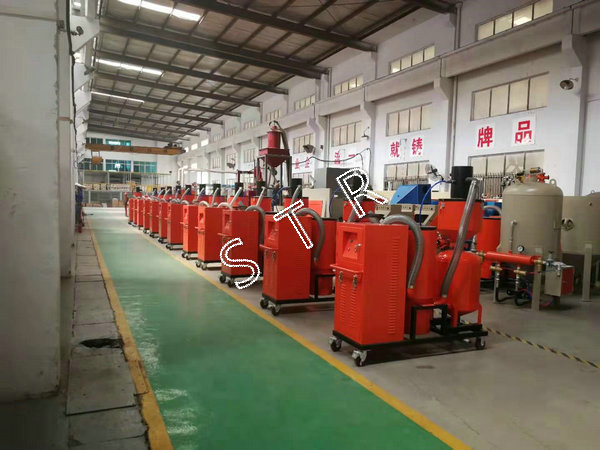

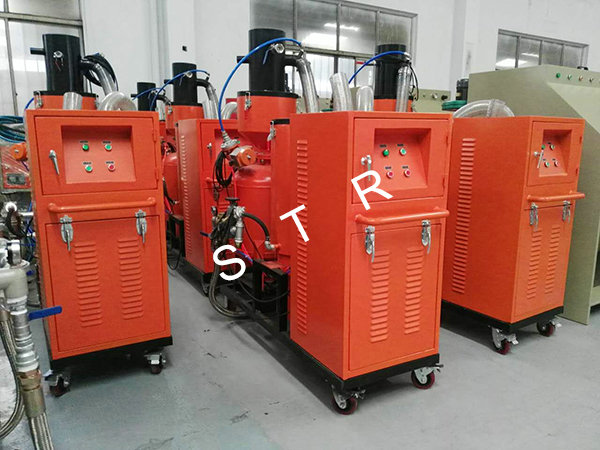

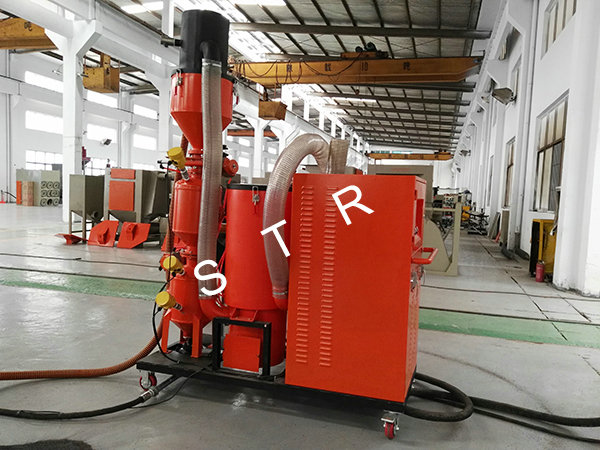

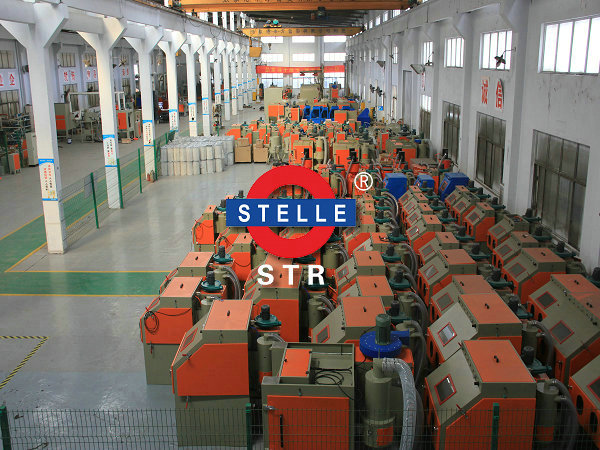

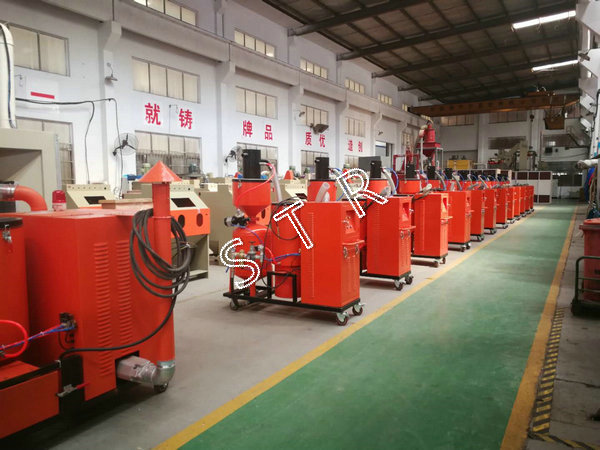

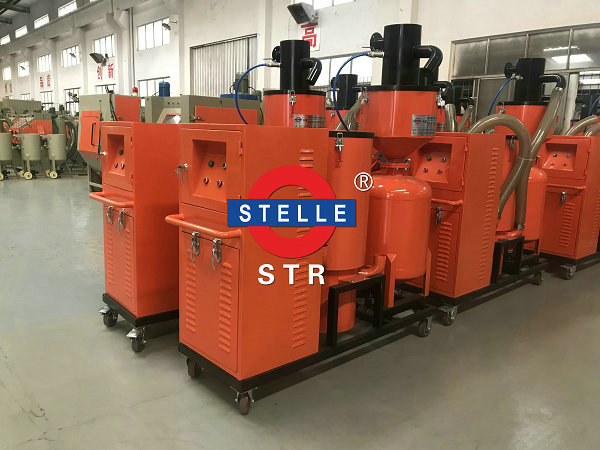

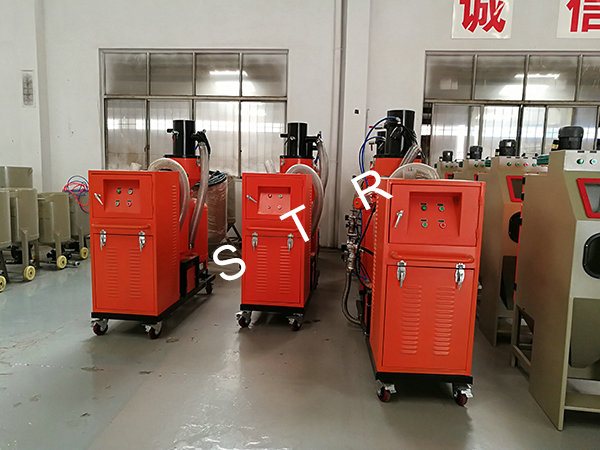

部份無塵自動循環環保型噴砂機案例:
